plot-ground-track

Type signature: (solution->[solution])

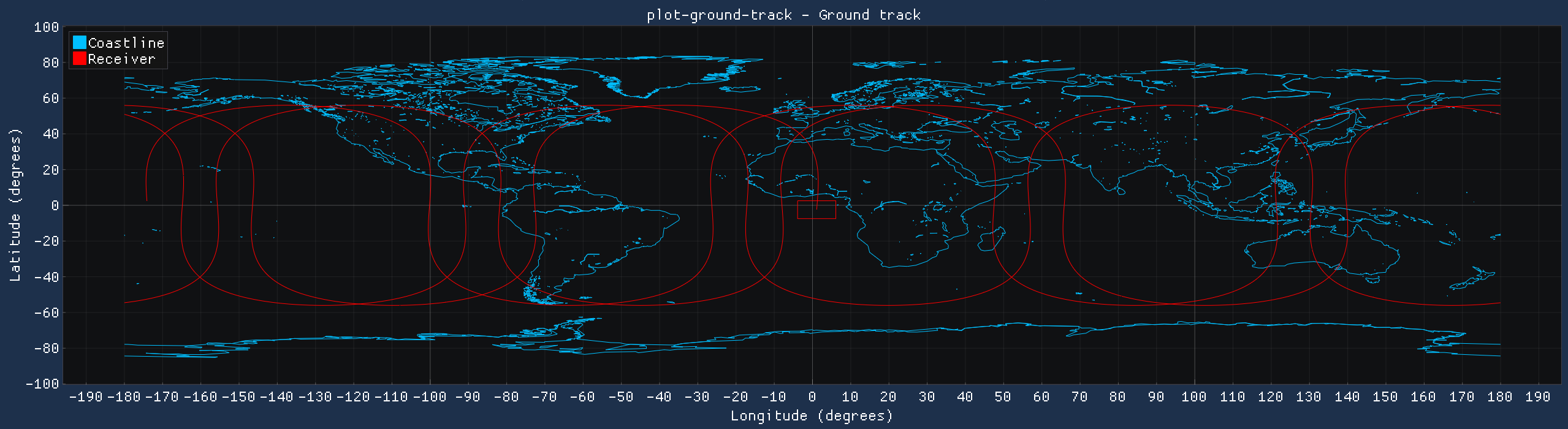

Plot generated by example

Plot solution position projected onto map of Earth

Help

Usage:

plot-ground-track [OPTION]...

Allowed options:

Option	Description
--help	produce help message
--draw-threshold arg (=1)	distance threshold at which to draw another ground track line segment (units: degrees of arc length)
--live-history arg (=inf)	duration of live history buffer (units: seconds)

Example

sdgps \
    simulate-sv-trajectory GAL_E1B 23 --sample-rate 1 --rate inf --duration 432000 \
    ! plot-ground-track
